PRODUCT DESCRIPTION

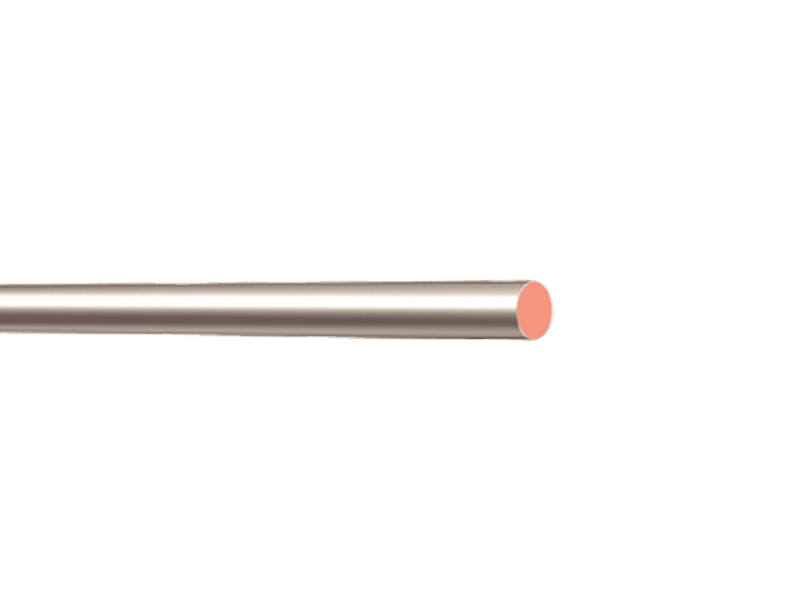

2 AWG Soft Drawn Solid Tinned Bare Copper Wires is for use as grounding connections in circuits, and grounding for machinery or equipment. Accomodates for grounding systems where high conductivity and flexibility is required.
| Amperage Rating | 225 Amperes |
| Conductor Material | Tinned Copper |
| Conductor Size | #2 AWG |
| Number Of Conductors | 1 |
| Strands | Solid |
| Temperature Rating | 194°F |
| Type | Bare Copper Wire |
| Voltage Rating | 600 Volts |
| Diameter | 0.2576 Inches |
| Weight | 0.2009 Pounds per Foot |
| Country of Origin | China |
| SIZE | WEIGHT | CIRCULAR | RATED | DC | RATED | DC | RATED | DC | ||
| (AWG) | PER | DIAMETER (MILS) | MIL AREA | STRENGTH | RESISTANCE | STRENGTH | RESISTANCE | STRENGTH | RESISTANCE | ALLOWABLE AMPACITIY |
| 1000 | (CMILS) | (LBS) | OHMS/1000" | (LBS) | OHMS/1000' | (LBS) | OHMS/1000' | |||
| (LBS) | @20℃ | @20℃ | @20℃ | |||||||
| SOLD | ||||||||||
| 14 | 12.4 | 64.1 | 4110 | 213.5 | 2.626 | 166.6 | 2.613 | 124.2 | 2.525 | |
| 13 | 15.7 | 72 | 5180 | 268 | 2.083 | 208.8 | 2.072 | 156.6 | 2.003 | |
| 12 | 19.8 | 80.8 | 6530 | 336.9 | 1.652 | 261.2 | 1.643 | 197.5 | 1.588 | |
| 11 | 24.9 | 90.7 | 8230 | 422.9 | 1.31 | 327.6 | 1.303 | 249 | 1.26 | |
| 10 | 31.4 | 101.9 | 10380 | 529.2 | 1.039 | 410.4 | 1.033 | 314 | 0.999 | |
| 9 | 39.6 | 114.4 | 13090 | 661.2 | 0.824 | 514.2 | 0.82 | 380.5 | 0.792 | |
| 8 | 50 | 128.5 | 16510 | 826 | 0.653 | 643.9 | 0.65 | 479.8 | 0.628 | 95 |
| 7 | 63 | 144.3 | 20820 | 1030 | 0.518 | 806.6 | 0.515 | 605 | 0.498 | 105 |
| 6 | 79.4 | 162 | 26240 | 1280 | 0.411 | 1010 | 0.409 | 762.9 | 0.395 | 125 |
| 5 | 100.2 | 181.9 | 33090 | 1591 | 0.326 | 1265 | 0.324 | 961.9 | 0.313 | 145 |
| 4 | 126.3 | 204.3 | 41740 | 1970 | 0.258 | 1584 | 0.257 | 1213 | 0.249 | 170 |
| 3 | 159.3 | 229.4 | 52620 | 2439 | 0.205 | 1984 | 0.204 | 1530 | 0.197 | 195 |
| 2 | 200.9 | 257.6 | 66360 | 3003 | 0.163 | 2450 | 0.162 | 1929 | 0.156 | 225 |
| 1 | 253.3 | 289.3 | 83690 | 3688 | 0.129 | 3024 | 0.128 | 2432 | 0.124 | 260 |
