PRODUCT DESCRIPTION

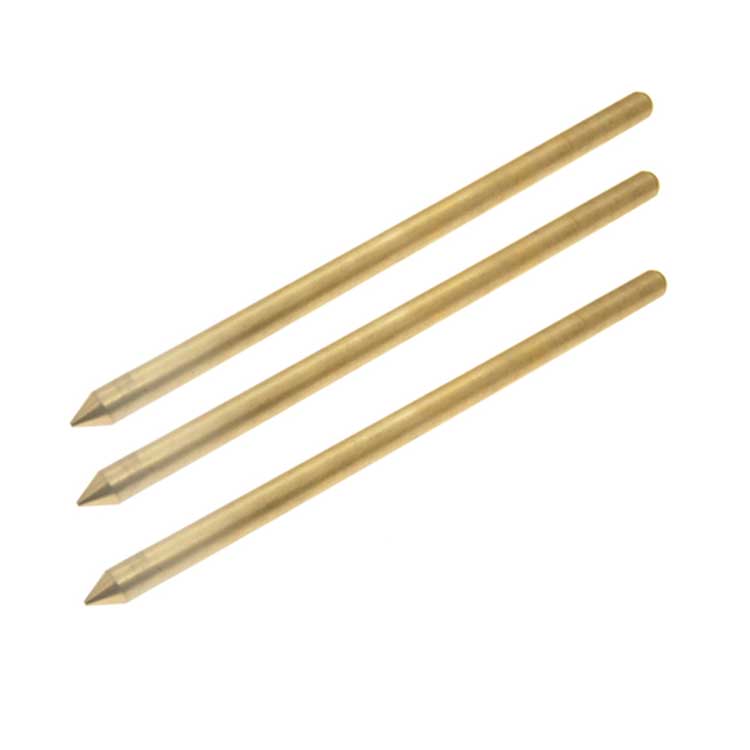

The Brass Copper Grounding Rods has characters of anti-corrosion and ductility,which is superior to a common copper clad steel rod and easy to install deeply.
It is widely used for the earthing system of power plants, transformer stations, towers, communication stations, airports, railways, subway stations,high buildings, computer rooms, petro plants, and oil reservoirs in environmental of moist, saline, and alkaline, acid and chemical corrosion medium environmental.
Method of use
The installation of the Ground Rod is very flexible, both hammer and electric pick are ok. In the bad soil
condition,please drill and then install.
1. When installing the rod deeply with a hammer, please fit the drilling head to protect the copper layer and connect multi grounding rod with the coupler ;
2. When installing the rod deeply in rock or another hard soil area with a drilling tool,please refer to the below two choices:
1). Before installing the rod ,please drill a hole and then fill the bentonite and water full to reduce electric resistance;
2). Fill bentonite and water after installing the rods to reduce electric resistance.
Above is the common size, we also can do it according to your requests.
It is widely used for the earthing system of power plants, transformer stations, towers, communication stations, airports, railways, subway stations,high buildings, computer rooms, petro plants, and oil reservoirs in environmental of moist, saline, and alkaline, acid and chemical corrosion medium environmental.
Method of use
The installation of the Ground Rod is very flexible, both hammer and electric pick are ok. In the bad soil
condition,please drill and then install.
1. When installing the rod deeply with a hammer, please fit the drilling head to protect the copper layer and connect multi grounding rod with the coupler ;
2. When installing the rod deeply in rock or another hard soil area with a drilling tool,please refer to the below two choices:
1). Before installing the rod ,please drill a hole and then fill the bentonite and water full to reduce electric resistance;
2). Fill bentonite and water after installing the rods to reduce electric resistance.
Above is the common size, we also can do it according to your requests.
| Material | Brass |
| Tensile strength | ≥290N/mm² |
| Straightness error | ≤1mm/service |
| e life | ≥30years |
| Diameter | 10mm,12mm,14mm,16mm,18mm,20mm,22mm,24mm,25mm |
| Diameter | according to customer's requirement |
| Function | used in grounding and lightning system available |
| e service mode | OEM, ODM |
| Certificate | ISO/CE/SGS/UL |
| Negotiable Price According to different material/size and and Purchase quantity | |
| Product specifications | Diameter(mm) | Length(mm) | Weight(kg) |
| UNI-Φ16×1500 | 16 | 1500 | 2.255 |
| UNI-Φ16×2000 | 16 | 2000 | 3.006 |
| UNI-Φ16×3000 | 16 | 3000 | 4.509 |
| UNI-Φ18×1500 | 18 | 1500 | 3.427 |
| UNI-Φ18×2000 | 18 | 2000 | 4.329 |
| UNI-Φ18×3000 | 18 | 3000 | 6.493 |
| UNI-Φ20×1500 | 20 | 1500 | 4.008 |
| UNI-Φ20×2000 | 20 | 2000 | 5.344 |
| UNI-Φ20×3000 | 20 | 3000 | 8.016 |
| UNI-Φ25×1500 | 25 | 1500 | 6.263 |
| UNI-Φ25×2000 | 25 | 2000 | 8.35 |
| UNI-Φ25×3000 | 25 | 3000 | 12.525 |
