Overview
Shackle insulators are often used in low-voltage distribution lines, which can be used both horizontally and vertically; It can be directly fixed on the pole with bolts or fixed on the pole with cross arms. The tapered hole of the spool insulator makes the load distribution more uniform and minimizes the possibility of fracture of the porcelain bottle under heavy load.
Applications:
Used in low voltage distribution lines

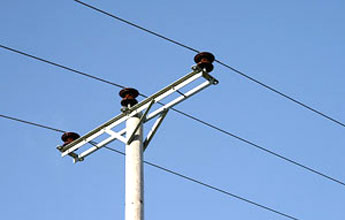

Shackle Insulators are used at the end of distribution lines or at sharp turns where there is excessive tensile load on the lines. The insulators are bolted to the cross-arm of the pole.
Shackle insulators are often used in low-voltage distribution lines, which can be used both horizontally and vertically; It can be directly fixed on the pole with bolts or fixed on the pole with cross arms. The tapered hole of the spool insulator makes the load distribution more uniform and minimizes the possibility of fracture of the porcelain bottle under heavy load.
Applications:
Used in low voltage distribution lines
Shackle Insulators are used at the end of distribution lines or at sharp turns where there is excessive tensile load on the lines. The insulators are bolted to the cross-arm of the pole.

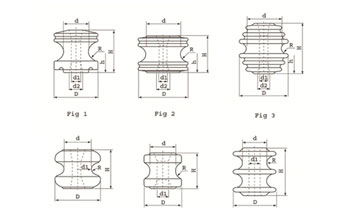

| ANSI Class/Standard | ANSI | |
| Mechanical Values(kV) | ||
| Transverse Strength(lbs) | 3000lbs | |
| Electrical Values(kV) | ||
| Low frequency dry flashover | 25kV | |
| Low frequency wet flashover | Vertical | 12kV |
| Horizontal | 15kV | |
| Net Weight(lb) | 1.14 lbs | |
