Product Instruction:

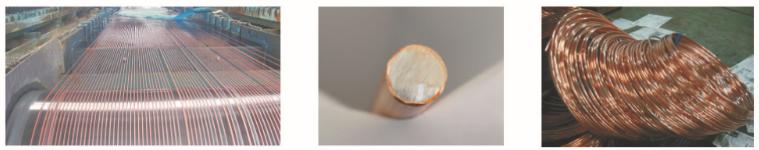

The single copper-clad steel grounding round wire is a new type of grounding made by our electroplating and continuous casting process. The most advanced technology is used to cover 99.9% pure copper to the surface of special steel core. The conductive property is the same as that of copper rod Corrosion resistance is much better than galvanized steel, with good electrical conductivity, low resistance, superior corrosion resistance, convenient transportation, construction convenience, high efficiency and many other advantages of construction, is to replace the round bar, angle steel, Galvanized flat steel and other traditional grounding materials, the best choice.
Product Feature:
Product life: ≥30 to 50 years (according to different corrosion conditions)
Acid / alkali / salt resistance: excellent product size error: ≤ ± 0.12mm
Surface quality: smooth, smooth and shiny without any appearance damage
Tensile strength: ≥300MPa
Copper layer thickness: ≥0.254mm (0.125mm-1mm different copper thickness products can be customized)
1.Skin effect principle, its conductivity and copper wire quite good conductivity to facilitate large current (such as lightning current, the occurrence of accident short-circuit current, etc.) transmission and diffusion;
2.Bundle, into the shaft packaging, easy to transport, easy loading and unloading;
3.To take special heat treatment, can be made into a soft state, large length, a significant reduction in the number of straight-line connection points to reduce the resistance of the network itself, effectively reducing the hidden deterioration of the network;
4. anti-corrosion performance, life expectancy of up to 50 years;
5.Can be used electroplating, continuous casting and other manufacturing process, in accordance with user demand for production of copper-clad steel wire and ground copper-clad steel grounding circle.
Suitable for the general environment and wet, saline, acid soil is extremely chemical corrosion medium of the special environment of the work of the high requirements of grounding, protection ground, lightning protection grounding, anti-static ground level grounding. Copper clad steel is more excellent mechanical properties, continuous casting copper clad steel corrosion is more superior, it is recommended for the more serious corrosion, mechanical stress and those who do not require the use of continuous casting copper-clad steel grounding circle , The level of grounding in the very acid environment), according to the specific circumstances of different types of grounding round wire.
Product Application:
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
