Product Information:
Cross arm tie straps has the same function as alley arm brace and angle brace just different construction.
Cross arm tie straps connect the electrical cross arm by bolts and nuts. They have a function of supporting the electrical cross arm and make the power pole cross arm firm. They are usually used in pairs.

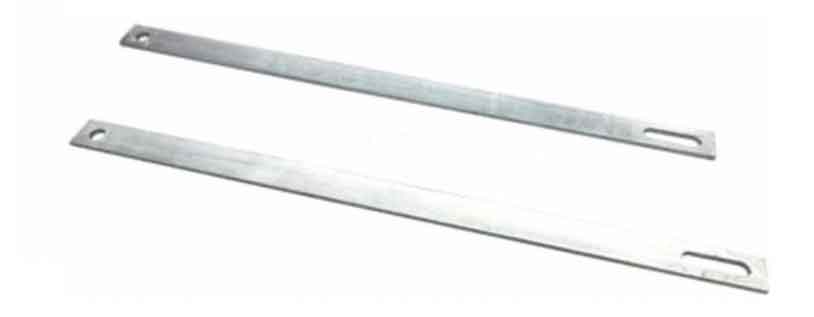

Flat Tie Straps
Angle Tie Straps

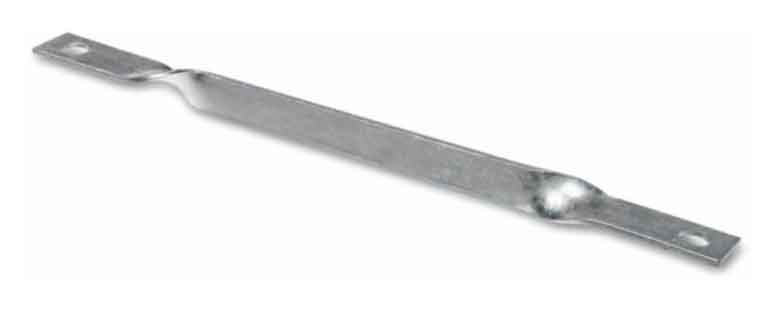

Twisted Tie Straps
Cross arm tie straps has the same function as alley arm brace and angle brace just different construction.
Cross arm tie straps connect the electrical cross arm by bolts and nuts. They have a function of supporting the electrical cross arm and make the power pole cross arm firm. They are usually used in pairs.
Flat Tie Straps
| Width(mm) | Thickness(mm) | Length(mm) |
| 50 | 6 | 450 |
| 50 | 6 | 750 |
| 50 | 6 | 910 |
| 40 | 6 | 580 |
| 40 | 6 | 860 |
| Width(mm) | Thickness(mm) | Length(mm) |
| 75X50 | 8 | 590 |
| 75x 50 | 8 | 750 |
| 70x 70 | 6 | 580 |
| 50x 50 | 6 | 840 |
| 50x 50 | 6 | 860 |
| Width(mm) | Thickness(mm) | Length(mm) |
| 50 | 6 | 450 |
| 50 | 6 | 590 |
| 50 | 6 | 750 |
| 50 | 6 | 900 |
