Overview
Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.
Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.
When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.
The clamp body and pressure plate of the CGH aluminum alloy envolope-type overhanging clamp are made of high-strength aluminum alloy and have undergone heat treatment process. There is no hysteresis effect and it has energy saving effects. It is recommended to replace the high energy consumption XGU series malleable cast iron suspension clamps.
CGF corona-proof type suspension clamp adopts anti-halo design, especially suitable for 110KV and above lines. The clamp body and pressure plate are made of high-strength aluminum alloy, and have undergone heat treatment process, no hysteresis effect, and energy saving.
XTS & CTS type suspension clamps for twin jumper conductor are adopted melleable iron casting & aluminum alloy, respectively. They are especially suitable for more than 110KV overhead transimission line; after thermal treatment, they are of hysteresis-free & energy-saving efficiency.
The energy-saving products developed by our company have passed the inspection of the Quality Inspection and Testing Center of the Ministry of Electric Power Industry, meet the requirements of GB2314 and relevant standards, and have passed the national energy-saving certification.
Percentage of suspension clamp gripping force to rated tensile force of wire:
Parameter
CGF Aluminum Alloy Corona-Proof Suspension Clamp
XT Jumper suspension clamp
XLU Center Rotary Aluminum Alloy Suspension Clamp
XGJ Malleable Iron Casting Suspension Clamps
CGH Aluminum Alloy Envelope Suspension Clamp
XTS & CTS Suspension Clamps for Twin Jumper Conductor
XGU Trunion Type Fixing Suspension Clamp
Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.
Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.
When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.
The clamp body and pressure plate of the CGH aluminum alloy envolope-type overhanging clamp are made of high-strength aluminum alloy and have undergone heat treatment process. There is no hysteresis effect and it has energy saving effects. It is recommended to replace the high energy consumption XGU series malleable cast iron suspension clamps.
CGF corona-proof type suspension clamp adopts anti-halo design, especially suitable for 110KV and above lines. The clamp body and pressure plate are made of high-strength aluminum alloy, and have undergone heat treatment process, no hysteresis effect, and energy saving.
XTS & CTS type suspension clamps for twin jumper conductor are adopted melleable iron casting & aluminum alloy, respectively. They are especially suitable for more than 110KV overhead transimission line; after thermal treatment, they are of hysteresis-free & energy-saving efficiency.
The energy-saving products developed by our company have passed the inspection of the Quality Inspection and Testing Center of the Ministry of Electric Power Industry, meet the requirements of GB2314 and relevant standards, and have passed the national energy-saving certification.
Percentage of suspension clamp gripping force to rated tensile force of wire:
| Wire Class | Wire Structure(Aluminum Ratio) | Percent | |
 |
>1.7 | 12 | |
| ACSR(Steel core aluminum stranded wire) | 4.0-4.5 | 18 | |
| 5.0-6.5 | 20 | ||
| 7.0-8.0 | 22 | ||
| 11.0-20.2 | 24 | ||
| Steel stranded wire | Ultimate strength 1176-1274 | 14 | |
| Aluminum stranded wire | 30 | ||

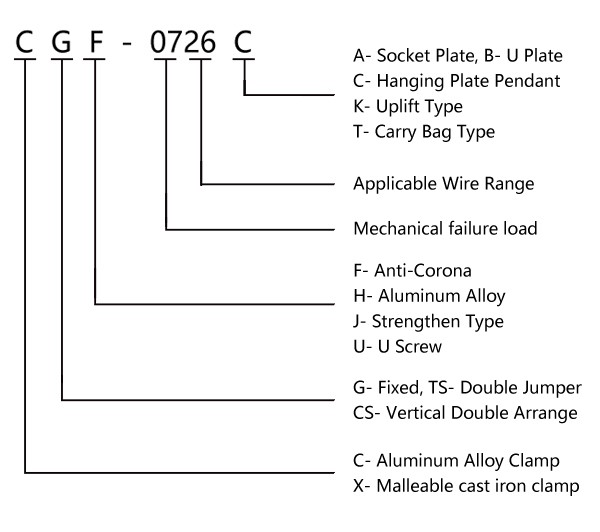

Parameter

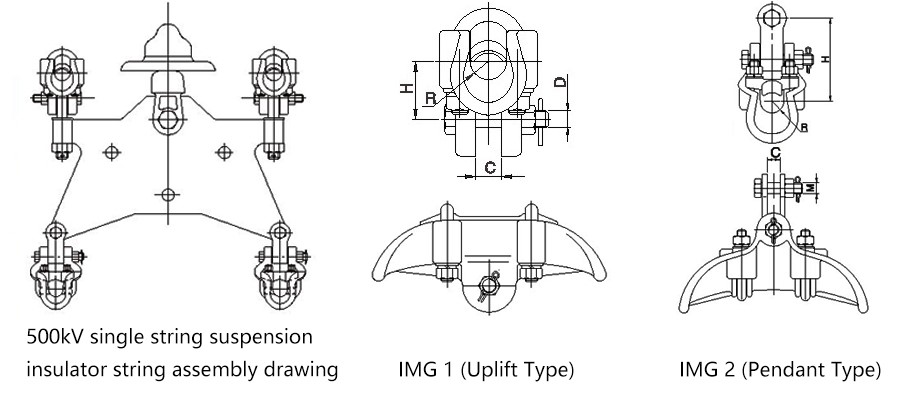

CGF Aluminum Alloy Corona-Proof Suspension Clamp
| Type | Equivalent model | IMG | Suitable for wire diameter range | Main Dimensions(mm) | Nominal failure load | Reference weight | |||
| (including wrapped wrapped)(mm) | H | R | C | M | (kN) | (kg) | |||
| CGF-0734K | CGF-5K | IMG 1 | Φ26.0 ~ 34.0 | 55 | 17 | 24 | 16 | 70 | 3 |
| CGF-1040K | Φ34.0 ~ 40.0 | 60 | 20 | 24 | 18 | 100 | 3.6 | ||
| CGF-1046K | CGF-6K | Φ40.0 ~ 46.0 | 63 | 23 | 26 | 18 | 100 | 3.6 | |
| CGF-0734C | CGF-5C | IMG 2 | Φ26.0 ~ 34.0 | 130 | 17 | 20 | 16 | 70 | 3.3 |
| CGF-1040C | Φ34.0 ~ 40.0 | 140 | 20 | 22 | 18 | 100 | 4.1 | ||
| CGF-1046C | CGF-6C | Φ40.0 ~ 46.0 | 153 | 23 | 20 | 18 | 100 | 4.3 | |
 |
|||||||||

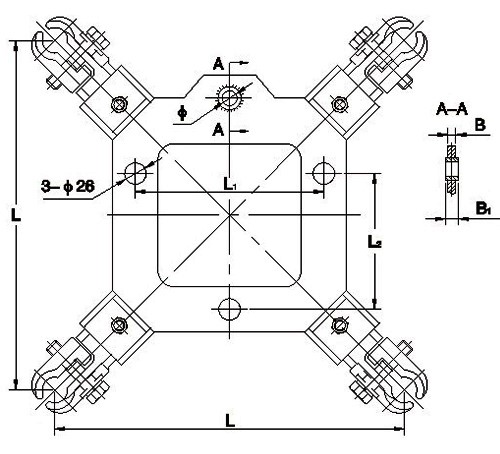

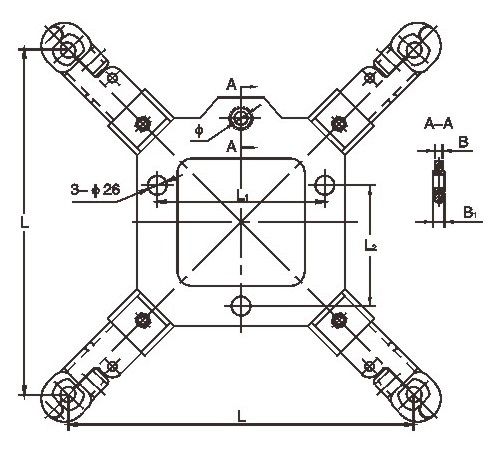

XT Jumper suspension clamp
| Type | Suitable for wire diameter range (including wrapper wrapped) (mm) | Main Dimensions (mm) |
Reference weight(KG) | ||||||
| B | B1 | Φ | L1 | L2 | L | ||||
| XT4-45300 | Φ20.8 ~ 24.0 | 10 | 16 | 18 | 240 | 175 | 450 | 6.6 |  |
| XT4-45400 | Φ24.0 ~ 28.0 | 10 | 16 | 18 | 240 | 175 | 450 | 6.6 | |
| Type | Suitable for wire diameter range (including wrapper wrapped) (mm) | Main Dimensions(mm) | Reference weight (KG) | ||||||
| B | B1 | Φ | L1 | L2 | L | ||||
| XTF4-45300 | Φ20.8 ~ 24.0 | 10 | 16 | 18 | 240 | 165 | 450 | 8.6 |  |
| XTF4-45400 | Φ24.0 ~ 28.0 | 10 | 16 | 18 | 240 | 165 | 450 | 8.6 | |

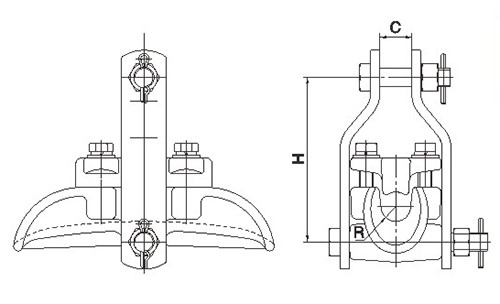

XLU Center Rotary Aluminum Alloy Suspension Clamp
| Type | Enterprise Standard model | Suitable for wire diameter range (including wrapped wrapped)(mm) | Main Dimensions(mm) | Nominal failure load(kN) | |||
| H | C | R | |||||
 |
XLU-1 | CLU-1 | Φ8 ~ 14 | 113 | 20 | 7 | 40 |
| XLU-2 | CLU-2 | Φ14 ~ 20 | 125 | 22 | 10 | 70 | |
| XLU-3 | CLU-3 | Φ20 ~ 26 | 145 | 28 | 13 | 80 | |
| XLU-4 | CLU-4 | Φ26 ~32 | 150 | 36 | 16 | ||
| XLU-5 | CLU-5 | Φ32 ~ 38 | 160 | 42 | 19 | 100 | |

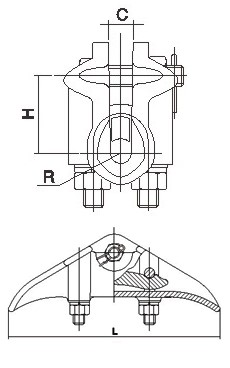

XGJ Malleable Iron Casting Suspension Clamps
| Type | Suitable for wire diameter range (including wrapper wrapped) (mm) | Main Dimensions(mm) | Nominal failure load(kN) | ||||
| H | L | R | C | ||||
| XGJ-2 | Φ 11.0 ~ 13.0 | 75 | 300 | 7 | 18 | 40 |  |
| XGJ-3 | Φ 13.1 ~ 18.0 | 75 | 300 | 11 | 27 | 40 | |
| XGJ-4 | Φ 21.1 ~ 23.0 | 75 | 300 | 12 | 27 | 40 | |
| XGJ-5 | Φ 23.0 ~ 43.0 | 80 | 390 | 18 | 38 | 70 | |
| XGJ-5A | Φ 34.0 ~ 45.0 | 90 | 476 | 23 | 48 | 90 | |
| XGJ-5B | Φ 34.0 ~ 45.0 | 90 | 476 | 23 | 48 | 90 | |

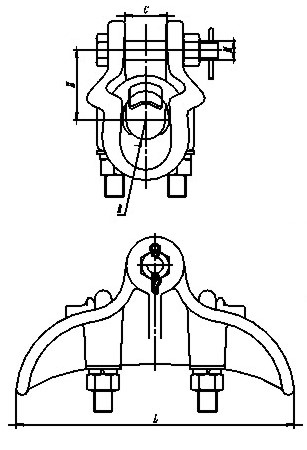

CGH Aluminum Alloy Envelope Suspension Clamp
| Type | Equivalent model | Suitable for wire diameter range (including wrapped wrapped)(mm) | Main Dimensions(mm) | Nominal failure load (kN) | Reference weight (kg) | ||||
 |
CGH-0418 | CGH-2 | Φ | Φ5.0 ~ 12.4 | 9 | 19 | 16 | 40 | 1.1 |
| CGH-0422 | CGH-3 | HS-220 | Φ12.4 ~ 20.0 | 11 | 22 | 16 | 40 | 1.4 | |
| CGH-0426 | CGH-4 | HS-280 | Φ20.0 ~ 26.0 | 13 | 28 | 16 | 40 | 1.9 | |
| CGH-0734 | CGH-5 | HS-330 | Φ26.0 ~ 34.0 | 17 | 36 | 16 | 70 | 2.5 | |
| CGH-0742 | CGH-6 | HS-370 | Φ34.0 ~ 40.0 | 21 | 45 | 16 | 70 | 2.8 | |
| CGH-0746 | CGH-7 | HS-480 | Φ40.0 ~ 46.0 | 23 | 48 | 16 | 70 | 3.2 | |
XTS & CTS Suspension Clamps for Twin Jumper Conductor
| Type | IMG | Suitable for Wire Diameter Range (Including Wrapped)(mm) | Main Dimensions(mm) | Nominal Failure Load | Weight | |||||||
| Φ | R | L | L1 | M | C | h | H | |||||
| XTS-2 | IMG 1 | 25.0~31.0 | 18 | 16 | 200 | 56 | 16 | 19 | 62 | 77 | 40 | 5 |
| XTS-2A | IMG 1 | 17.0~21.0 | 18 | 11 | 200 | 50 | 16 | 19 | 57 | 76 | 40 | 4.5 |
| XTS-2B | IMG 1 | 21.0~27.0 | 18 | 14 | 200 | 52 | 16 | 19 | 59 | 77 | 40 | 5 |
| CTS-2 | IMG 2 | 17.0~27.0 | 18 | 14 | 200 | 52 | / | / | 55 | 70 | 40 | Φ |
| CTS-5 | IMG 2 | 24.0~34.0 | 18 | 17 | 200 | 30 | / | / | 55 | 70 | 40 | 3 |
 |
||||||||||||

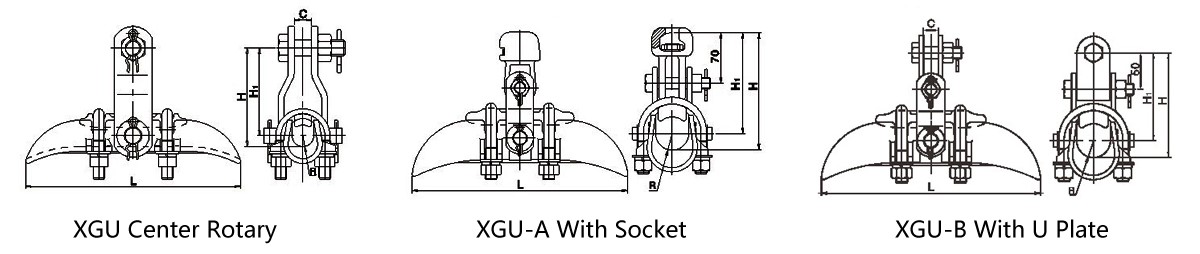

XGU Trunion Type Fixing Suspension Clamp
| Type | Remark | Suitable for Wire Diameter Range (Including Wrapped)(mm) | Main Dimensions(mm) | Nominal Failure Load(kN) | Weight(kg) | ||||
| H | H1 | L | R | C | |||||
| XGU-1 | Equivalent Model XGZ-4009 | 5.0~7.0 | 82 | 70 | 180 | 4 | 18 | 40 | 1.4 |
| XGU-2 | Equivalent Model XGZ-4014 | 7.1~13.0 | 82 | 70 | 200 | 7 | 22 | 40 | 1.5 |
| XGU-3 | Equivalent Model XGZ-4022 | 13.1~21.0 | 102 | 90 | 220 | 11 | 18 | 40 | 2 |
| XGU-4 | 21.1~26.0 | 110 | 90 | 250 | 13.5 | 18 | 40 | 3 | |
| XGU-5A | with Socket | 23.0~33.0 | 157 | 140 | 300 | 17 | 70 | 5.7 | |
| XGU-5B | with U Plate | 23.0~33.0 | 137 | 120 | 300 | 17 | 20 | 70 | 5.4 |
| XGU-6A | with Socket | 34.0~45.0 | 163 | 140 | 300 | 23 | 70 | 6.1 | |
| XGU-6B | with U Plate | 34.0~45.0 | 143 | 120 | 300 | 23 | 20 | 70 | 5.8 |
| XGU-7B | with U Plate | 45.0~48.7 | 156 | 130 | 300 | 26 | 20 | 70 | 6.2 |
 |
|||||||||
