Overview
Terminal connectors are used to connect tap conductor to power equipment to wall bushing of substation aluminium connectors are also used to connect the tap conductor of T-connector.
Parameter
Terminal connectors are used to connect tap conductor to power equipment to wall bushing of substation aluminium connectors are also used to connect the tap conductor of T-connector.
Parameter

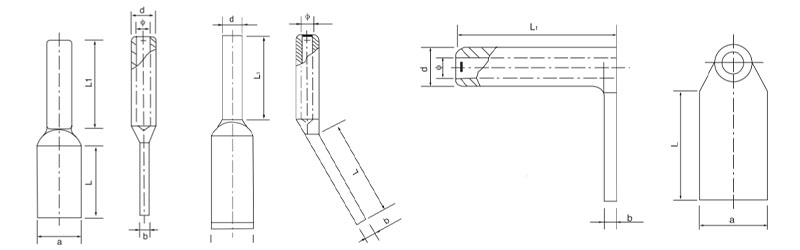

| Type | Suitable Conductor(mm2) | Main Dimension(mm) | ||||
| Type | A | B | D | L1 | L2 | |
| SYG-50 | LGJ-50 | 30 | 5 | 18 | 60 | 60 |
| SYG-70 | LGJ-70 | 40 | 5 | 22 | 70 | 70 |
| SYG-95 | LGJ-95 | 40 | 5 | 26 | 80 | 70 |
| SYG-120 | LGJ-120 | 50 | 5 | 26 | 80 | 80 |
| SYG-150 | LGJ-150 | 50 | 5 | 30 | 90 | 80 |
| SYG-185 | LGJ-185 | 50 | 6.3 | 32 | 90 | 80 |
| SYG-240/30A | LGJ-240/30 | 50 | 6.3 | 36 | 100 | 80 |
| SYG-300/15A | LGJ-300/15 | 63 | 8 | 40 | 110 | 100 |
| SYG-300/20A | LGJ-300-20 | 63 | 8 | 40 | 110 | 100 |
| SYG-300/25A | LGJ-300/25 | 63 | 8 | 40 | 110 | 100 |
| SYG-300/40A | LGJ-300/40 | 63 | 8 | 40 | 110 | 100 |
| SYG-400/20A | LGJ-400/20 | 63 | 8 | 45 | 120 | 100 |
| SYG-400/25A | LGJ-400/25 | 63 | 8 | 45 | 120 | 100 |
| SYG-400/35A | LGJ-400/35 | 63 | 8 | 45 | 120 | 100 |
| SYG-400/50A | LGJ-400/50 | 63 | 8 | 45 | 120 | 100 |
| SYG-500/35A | LGJ-500/35 | 80 | 8 | 52 | 130 | 100 |
| SYG-500/45A | LGJ-500/45 | 80 | 8 | 52 | 130 | 100 |
| SYG-500/65A | LGJ-500/65 | 80 | 8 | 52 | 130 | 100 |
| SYG-630/45A | LGJ-630/45 | 100 | 10 | 60 | 150 | 100 |
| SYG-630/55A | LGJ-630/55 | 100 | 10 | 60 | 150 | 100 |
| SYG-630/80A | LGJ-630/80 | 100 | 10 | 60 | 150 | 100 |
| SYG-800/55A | LGJ-800/55 | 125 | 12.5 | 65 | 170 | 125 |
| SYG-800/70A | LGJ-800/70 | 125 | 12.5 | 65 | 170 | 125 |
| SYG-800/100A | LGJ-800/100 | 125 | 12.5 | 65 | 170 | 125 |
