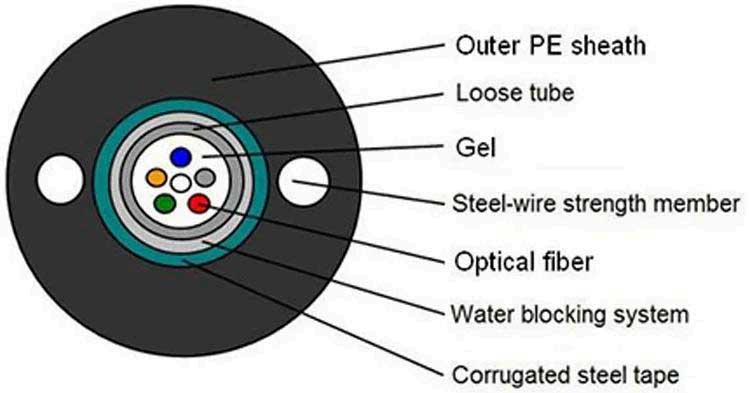

Product Structure Diagram
Product Description
Fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The water blocking tape is applied around the central tube. Then the tubes are armored with a corrugated steel tape (CST) logitudinally. Two parallel steel wires are embeded in the outer PE jacket.
Product Features
Good mechanical and thermal performance.
Hydrolysis resistant loose tube.
Tube filling gel ensures critical protection of fiber.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and convinient installation.
Corrugated steel tape(CST) enhancing moisture-proof.
Long delivery length.
Application
Direct-burial/Duct/NonSelf-supporting.
Aerial Installation.
Technical Specifications
Product Parameters
Product Description
Fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The water blocking tape is applied around the central tube. Then the tubes are armored with a corrugated steel tape (CST) logitudinally. Two parallel steel wires are embeded in the outer PE jacket.
Product Features
Good mechanical and thermal performance.
Hydrolysis resistant loose tube.
Tube filling gel ensures critical protection of fiber.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and convinient installation.
Corrugated steel tape(CST) enhancing moisture-proof.
Long delivery length.
Application
Direct-burial/Duct/NonSelf-supporting.
Aerial Installation.
Technical Specifications
Product Parameters
| Project | Technical indicators |
| Counts | 2-12 |
| Max.fiber counts per tube | 12 |
| Cable Diameter(mm) | 7.9 |
| Reference weight(Kg/km) | 68 |
| Fiber Type | G652D G655 G65750/12562.5/125 |
| Tensile Strength(N) | Long/Short Term:600/1500 |
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 |
| Bending Radius(mm) | Static/Dynamic:10D/20D |
| Temperature(℃) | Storage /Operation:-40℃~+70℃ |
